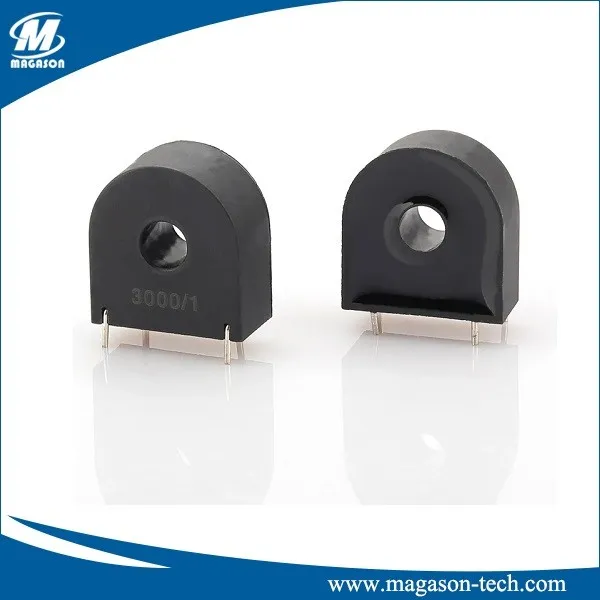

Mini tam sim no transformers yog nrov tshaj plaws ntawm tam sim no transformer ntau yam. High tso zis voltage ua ke nrog zoo linearity ua rau PCB CT ib qho zoo tagnrho cov nqi uas tsis muaj nqi siv nyob rau hauv EV chargers (16A, 32A). Tus nqi qis 50/60 Hz mini tam sim no transformers yog tsim los rau qib siab cores muab cov linearity zoo, siab saturation, thiab siab tso zis voltage. Qhov no muaj ntau yam ntawm 2000: 1 piv CT's muaj nyob rau hauv tam sim no kev ntaus nqi los ntawm 1A txog 60 A nyob rau hauv tag nrho encapsulated PCB mount tej pob khoom. Cov ntawv thov suav nrog lub ntsuas ntsuas ntse, EV them nyiaj, kuaj pom qhov txhaum hauv av, cov khoom siv hluav taws xob thiab thauj khoom tam sim no. Cov qib siab saturation ntawm cov cores ua rau cov koob no haum rau kev hloov cov tswj Circuit Court hauv cov xwm txheej dhau.
Nta:
1. Tsawg profile, compact loj, Epoxy resin encapsulated, tag nrho enclosed.
2. PCB mounting hom, yooj yim kho thiab nruab.
3. dav linearity ntau rau cov zis tam sim no thiab qis theem ua haujlwm yuam kev.
4. Cov neeg siv khoom tshwj xeeb muaj.
5. Siv nyob rau hauv universal thiab nyob rau hauv zoo interchangeability.
6. Tus nqi qis. Tsawg profile rau PCB mounting
7. High precision, dav linear ntau, tsawg theem hloov yuam kev
8. Cov ntaub ntawv kub-resistant thiab muab tub lim
Specifications
- Chav kawm raug: 0.1
- Dielectric zog: 2500V / min
- Dielectric Resistance: 1000M Ohms @ 500 VDC
- Ua haujlwm zaus 50-400Hz
- ambient kub: -25degrees~+85degrees
- Raws li RoHS
- CE pom zoo
- Cov neeg siv khoom tshwj xeeb muaj
| A | B | C | D | E | F | G | H | I | |
| TIAB SA 021 | 19.4 | 8.2 | 19.5 | 5.5 | 12.7 | N/A | N/A | 1.0 | 3.0 |
| TIAB SA CT022 | 23.5 | 11.0 | 25.0 | 6.7 | 15.24 | 19.0 | 9.5 | 1.0 | 3.0 |
| TIAB SA 023 | 26.0 | 17.0 | 28.0 | 9.0 | 15.24 | 19.0 | 15.5 | 1.0 | 3.0 |
| TIAB SA 024 | 26.0 | 17.0 | 28.0 | 9.0 | 15.24 | 33.02 | 12.7 | 1.0 | 3.0 |
| ... | ... |
- Qhov siab tshaj plaws nruam thawj tam sim no 4 × rated tam sim no
- Cia Kub: -45 degree rau +85 degree
- Kev khiav hauj lwm kub lub hom phiaj & npib tsib xee: -40 degree rau +85 degree
- Kev khiav hauj lwm kub siab zaus: -40 degree rau +65 degree
- Kos npe: Ntu naj npawb thiab hnub code
- Nco tseg: Txhua qhov kev qhia tshwj xeeb yuav hloov pauv yam tsis tau ceeb toom
Daim ntawv thov
- Hluav taws xob ntsuas hluav taws xob, hluav taws xob hloov hluav taws xob, ntsuas hluav taws xob precision thiab lwm yam khoom siv hluav taws xob thiab hluav taws xob xyuas;
- Tshaj tam sim no tiv thaiv Circuit Court ntawm lub cev muaj zog thiab lwm yam khoom siv hluav taws xob.
