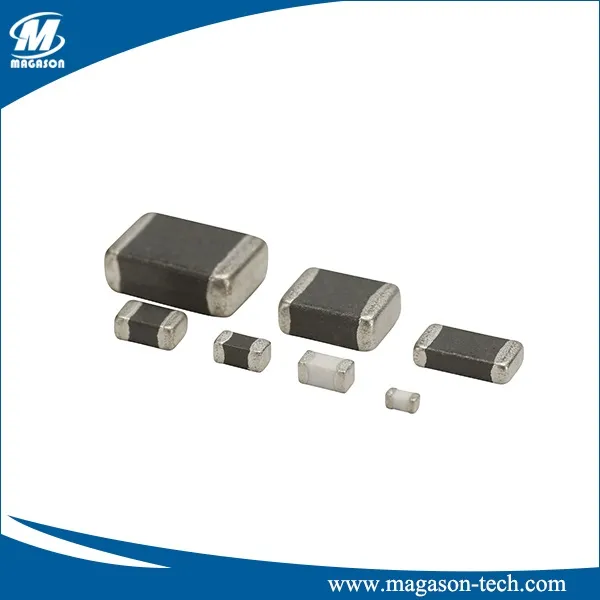

Thaum xaiv ib qho ferrite chip inductor rau cov kev siv hluav taws xob hig-, koj yuav tsum tau coj mus rau hauv tus account bandwidth thiab lub zog ntawm cov khoom siv nrog DC Bias tam sim no. Nco ntsoov tias lub thauj khoom tam sim no los ntawm Ferrite hlaws nyob rau hauv lub zog muab cov ntawv thov tsis yog xoom txhua lub sijhawm. Tsis tas li, muaj qhov kev hloov pauv tseem ceeb hauv txhua qhov kev txwv no yog qhov DC Bias tam sim no nce ntxiv ntawm xoom. Saturation ntawm cov khoom tseem ceeb pib nrog kev nce hauv DC Bias tam sim no, txo qis cov hlaws qhov tsis sib xws.
- Multilayer Monolithic kev siv yields kev ntseeg tau.
- Zoo heev solderability thiab cua sov tsis kam rau yog ntws los yog reflow soldering.
- Ntau EMI supression ntau dua qhov ntau ntau
- Suab nrov hauv cov khoom siv digital xws li khoos phis tawj thiab nws cov khoom siv hluav taws xob, DVD, lub koob yees duab, OA, thiab lwm yam.
| Ntaus | Qhov ntev (hli) | |||
| L | W | T | a1 a2 | |
| 0603 | 0.60±0.05 | 0.30±0.05 | 0.30±0.05 | 0.15±0.05 |
| 1005 | 1.00±0.15 | 0.50±0.15 | 0.50±0.15 | 0.25±0.10 |
| 1608 | 1.60±0.15 | 0.80±0.15 | 0.80±0.15 | 0.30±0.20 |
| 2012 | 2.00±0.20 | 1.25±0.20 | 0.85±0.20 | 0.50±0.30 |
| 3216 | 3.20±0.20 | 1.60±0.20 | 0.90±0.20 | 0.50±0.30 |
Cov tsis muaj ntawm Chip hlaws ntau yog suav nrog:
- Pib Fluxete Flux (U Nqi)
- Curie Kub
- Kev Ua Haujlwm Zaus
